Fayette County GIS Data - For CAD
The Fayette County Supervisor of Assessments webpage provides information related to the county's Geographic Information System (GIS) and property assessment services. It highlights the ongoing development of a comprehensive GIS by The Sidwell Company, which aims to integrate various layers of parcel-based mapping data to support local government functions. The site also offers access to property search tools, including parcel data and tax records, as well as resources related to property assessments, exemptions, and valuation processes. Additional links direct users to related services and information pertinent to property ownership and assessment in Fayette County, Illinois.
Fayette County GIS Data ->
Data Available
Download GIS Data for Fayette County
Parcels and Buildings
This image shows parcel and building data in Fayette County created using GIS data in Equator.

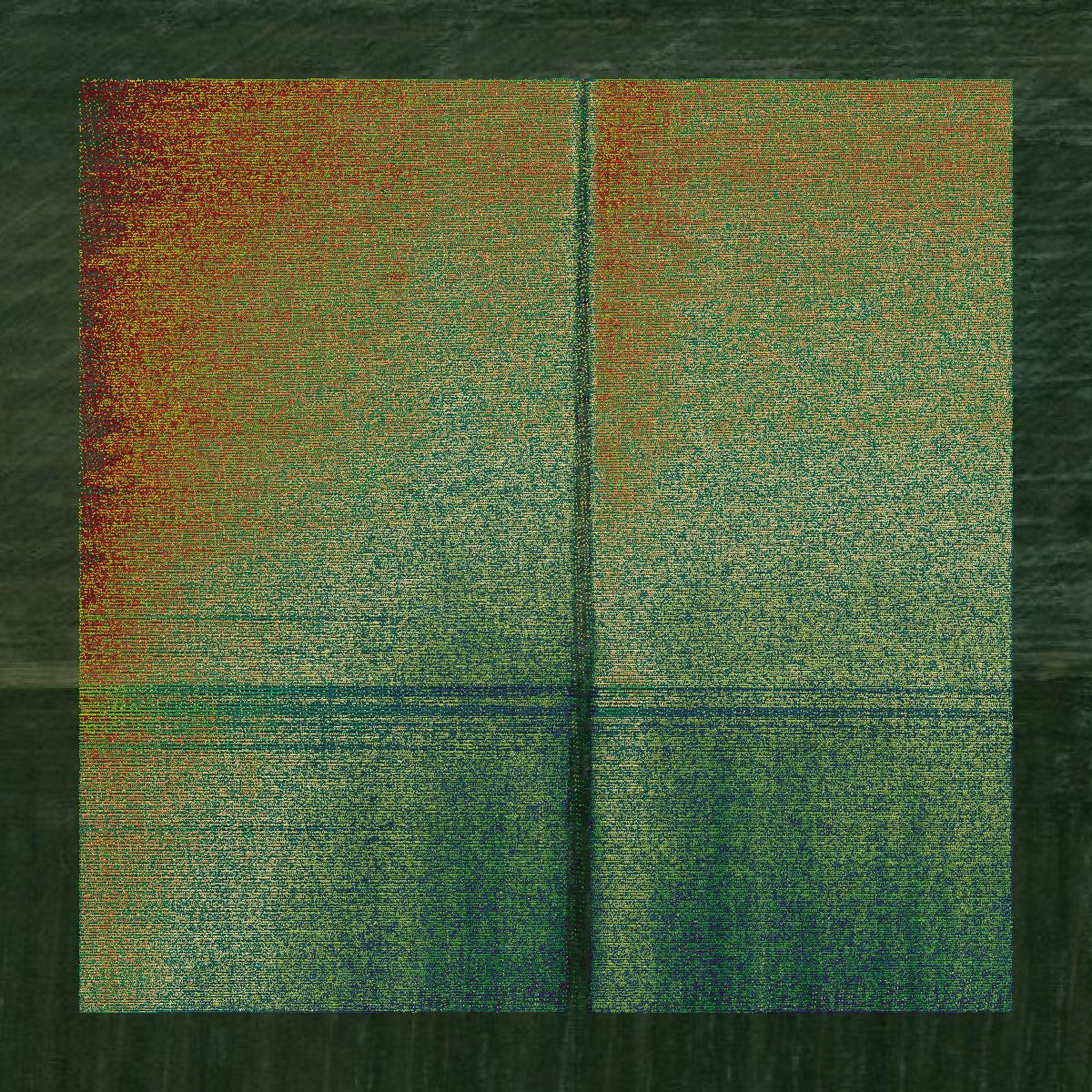

LiDAR
This image shows a LiDAR point cloud in Fayette County created using GIS data in Equator.

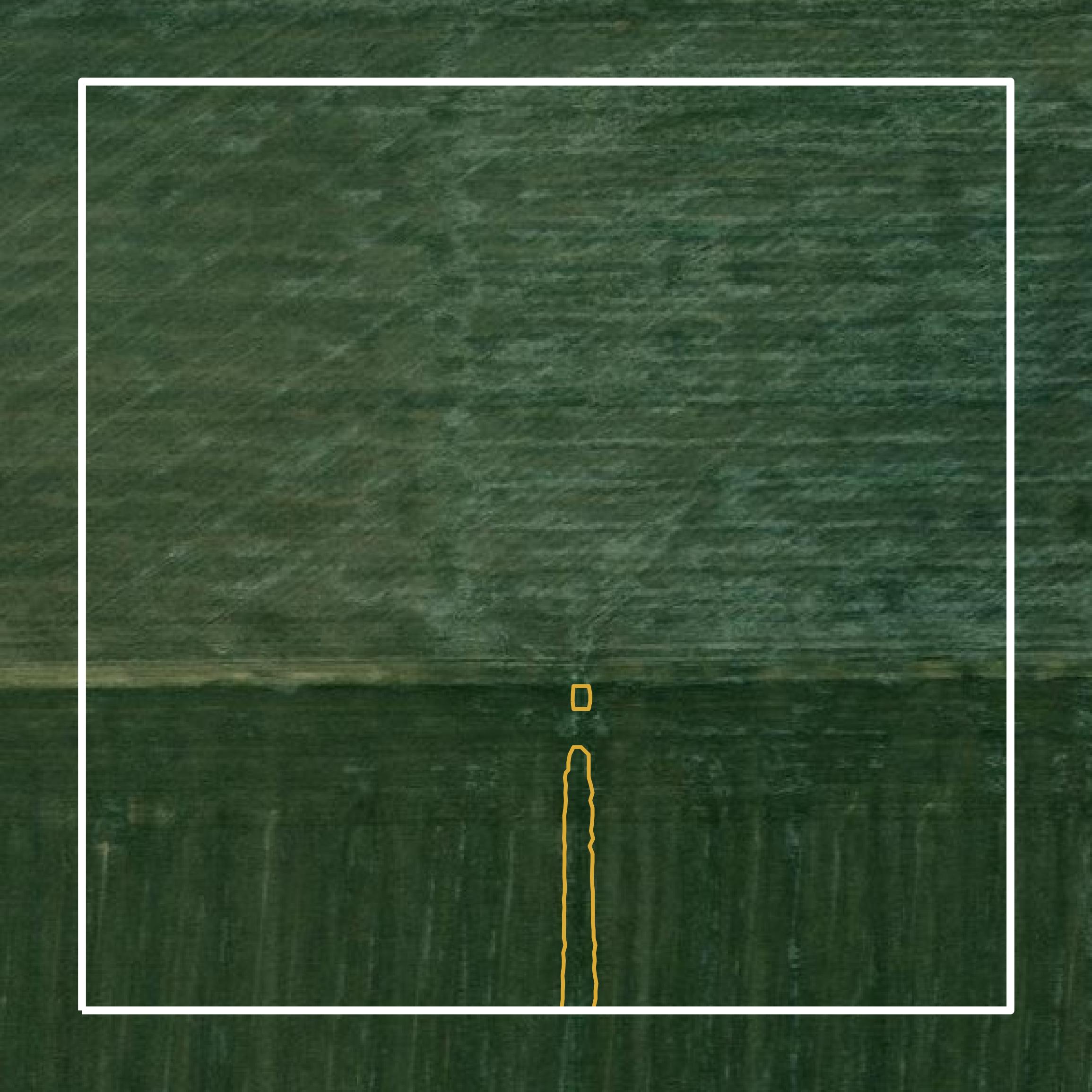

Contours
This image shows a contour map in Fayette County created using GIS data in Equator.
Formats Available
Export Your Data Ready to Use in Multiple Formats
DWG
AutoCAD Drawing - Industry-standard CAD format
Supported Data:
Contour, Parcel, Building Outline
SHP
Shapefile - Standard GIS vector format
Supported Data:
Contour, Parcel, Building Outline
DXF
Drawing Exchange Format - Universal CAD interchange
Supported Data:
Contour, Building Outline
GeoJSON
Geographic JSON - Web-friendly spatial data format
Supported Data:
Contour, Parcel, Building Outline
LAZ
Compressed LAS - Efficient LiDAR point cloud format
Supported Data:
Point Cloud
SVG
Scalable Vector Graphics - Web vector format
Supported Data:
Contour, Building Outline
GPKG
GeoPackage - Modern OGC spatial database format
Supported Data:
Contour, Parcel, Building Outline
LandXML (Coming Soon)
Land XML - Civil engineering data exchange format
Supported Data:
Point Cloud
TIN (Coming Soon)
Triangulated Irregular Network - 3D surface model
Supported Data:
Point Cloud
XYZ (Coming Soon)
XYZ Point Cloud - Simple ASCII point cloud format
Supported Data:
Point Cloud
Showcase
Sample GIS Data for Fayette County

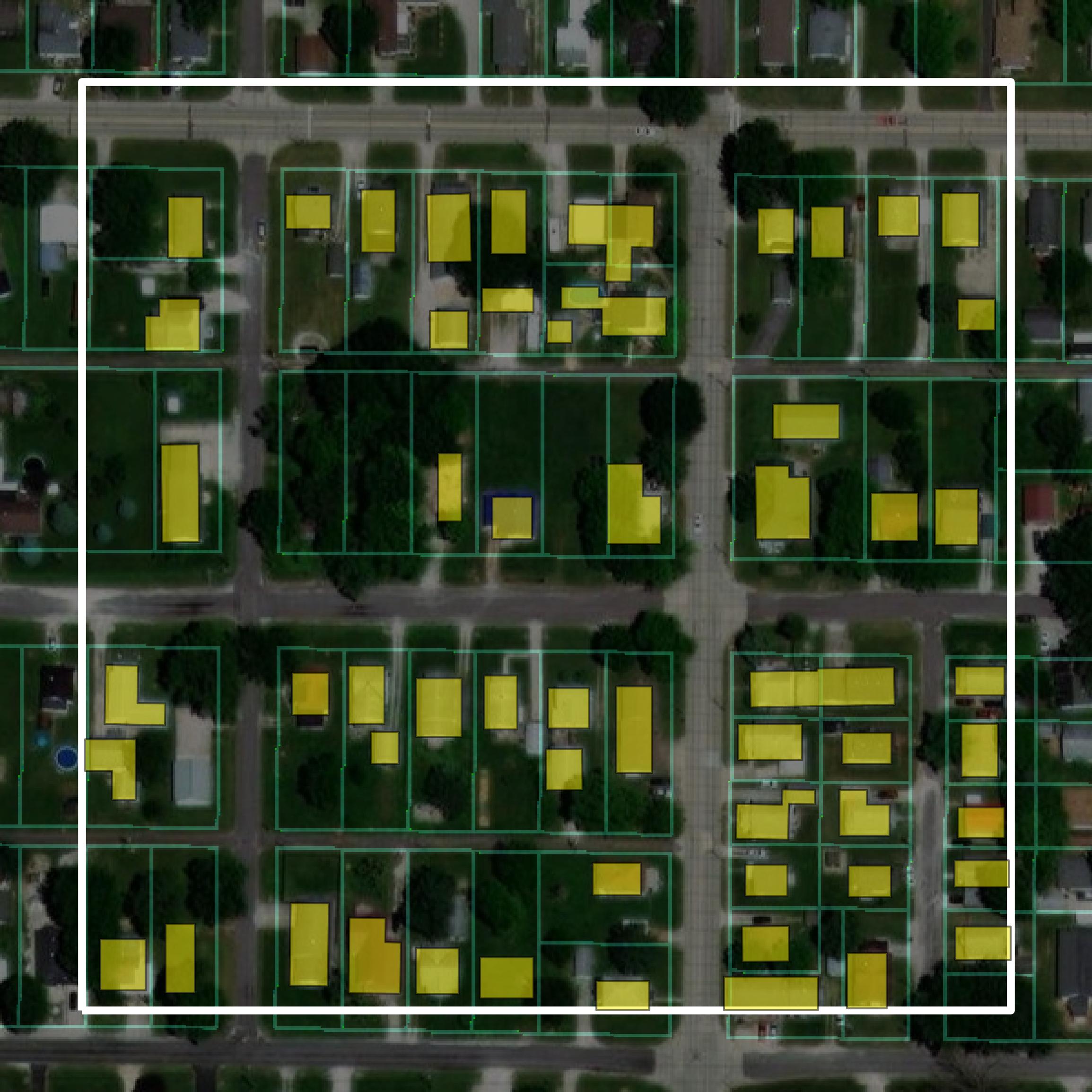

Parcels and Buildings
Parcel and building data in Fayette County are used in a variety of fields including architecture, real estate, and urban planning.

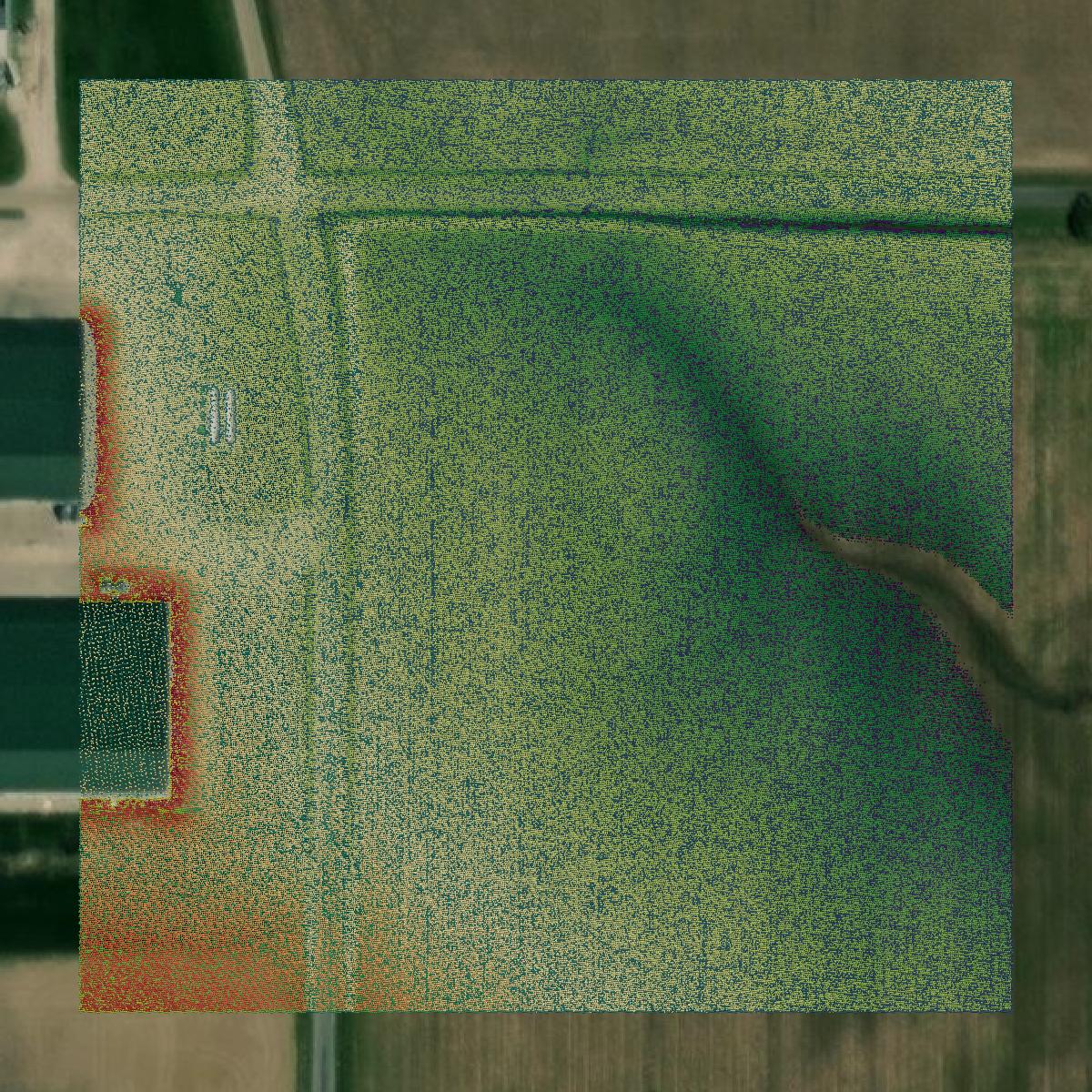

LiDAR
Point clouds (LiDAR) in Fayette County can produce highly accurate 3D models of terrain, structures, and vegetation.

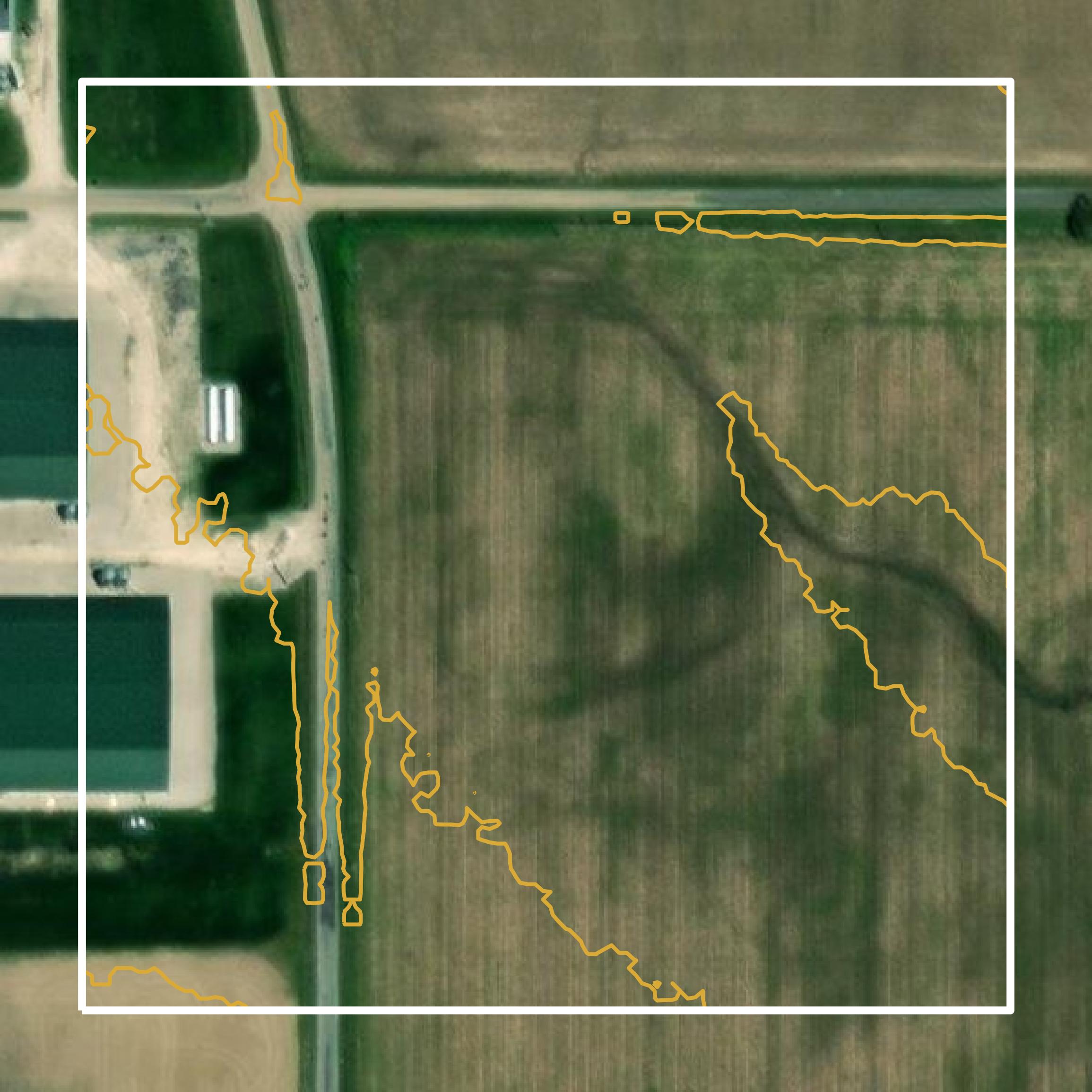

Contours
Contours in Fayette County visualize 3D elevations on a 2D surface allowing you to better understand your site.
